C-More RTS pēdas nospieduma standarts

C-More RTS footprint standard

C-more RTS pēdas standarts sastāv no divām ligzdām priekšpusē. Pēdas apakšējā daļā ir arī divas skrūvju atveres.

Šo standartu izmanto galvenokārt lielāka izmēra kolimatori: kolimatori, kas paredzēti pilna izmēra pistoles vai kompakta izmēra pistoles.

Pēdas raksts

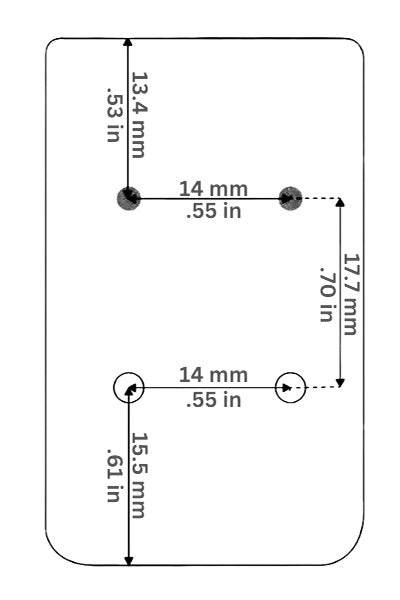

Kā izskatās C-More RTS pēdas raksts? Shēma ar visām detaļām ir augstāk.

  • priekšā ir divas ligzdas, kas viena no otras atrodas 14 mm [0.55 in] attālumā, un
  • arī divas skrūvju atveres pēdas aizmugurē, kas ļauj kolimators fiksēt uz plāksnes vai kolimatora stiprinājums

Montāža

Ja vēlaties uzstādīt kolimators, kas ir savietojams ar C-More RTS pēdas standartu, uz jūsu pistoles, jums ir divas iespējas: plāksnes un montāžas.

  • plāksnes darbojas ar optics ready modeļiem ar optic ready izgriezumu slīdē,
  • montāžas darbojas ar standarta modeļiem un tās kalpo kā aizmugurējā skata aizstājējs dovetail izgriezumā.

Plāksnes ar C-More RTS pēdu

Šeit jūs varat atrast atbilstošas plāksnes, kas ļauj uzstādīt kolimators tēmēkļi ar C-More RTS pēdas standartu. Pilns savietojamo kolimatori saraksts ir zemāk rakstā.

Plāksnes ar C-More RTS pēdu

Skatīt visu

Montāžas ar C-More RTS pēdu

Šeit jūs varat atrast atbilstošas montāžas, kas ļauj uzstādīt kolimators tēmēkļi ar C-More RTS pēdas standartu. Pilns savietojamo kolimatori saraksts ir zemāk rakstā.

Montāžas ar C-More RTS pēdu

Skatīt visu

Savietojamie kolimatori

Zemāk jūs varat atrast aktuālo kolimators tēmēkļi sarakstu, kas ir savietojami ar C-More RTS pēdu.

Tas nozīmē, ka šie kolimatori darbosies uz jebkura no augstāk uzskaitītajiem kolimatora plāksnes vai kolimatora stiprinājumi.

C-More RTS standard

  • Benthley TSX6,
  • Benthley A1,
  • C-More RTS 2,
  • C-More STS 2,
  • C-More RTS 3,
  • C-More STS 3,
  • Delta Optical MiniDot HD 24,
  • Delta Optical Stryker,
  • Kahles Helia RD,
  • Kite Optics,
  • Kite Optics K1,
  • Sig Romeo 3,
  • Toni System ZR,
  • Toni System ZX,
  • Toni System ZT,
  • Vector Optics Frenzy 1x26x32,
  • Vector Optics Frenzy Plus 1x22x32,
  • Vortex Razor

Kolimatori ar C-More RTS pēdu

Skatīt visu
