Trijicon RMR pēdas nospieduma standarts

Trijicon RMR footprint standard

Kura kolimatori strādās ar Trijicon stiprinājumu? Vai jūs varēsiet uzstādīt Holosun 507C uz tās pašas plāksnes kā Trijicon RMR kolimators tēmēkli? Šajā rakstā mēs aptveram pilnu pēdas nospieduma savietojamību.

Pēdas nospieduma savietojamība izskaidrota

Ko nozīmē "pēdas nospiedums"? Termins pēdas nospiedums attiecas uz optiskās ierīces pamatnes kontaktligzdu un skrūvju caurumu struktūru.

Un ko tas nozīmē, ja pēdas nospiedumi ir savietojami? Katram optiskajam tēmēklim ir kāda pamatne montāžai. Pamatne sastāv no tapām dažādās pozīcijās un caurumiem skrūvēm, kas tiek izmantotas tēmēkļa piestiprināšanai pie stiprinājuma.

Ja jebkuri divi tēmēkļi izmanto to pašu pamatni montāžai, mēs sakām, ka tiem ir vienāds pēdas nospiedums. Šajā rakstā mēs parādām, kuri kolimatori dalās ar to pašu pēdas nospiedumu.

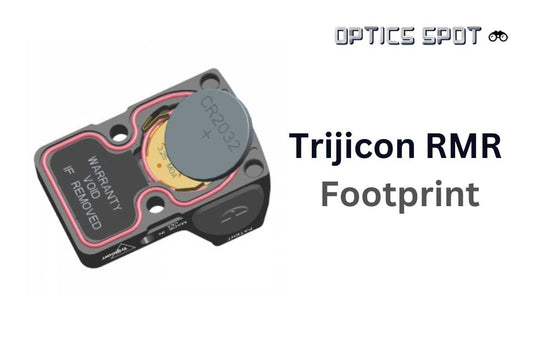

Trijicon RMR pēdas nospieduma modelis

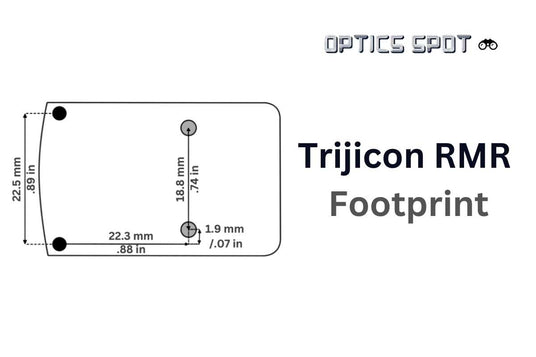

RMR pēdas nospiedums sastāv no divām ligzdām priekšpusē un divām skrūvju caurumiem redzes vidū.

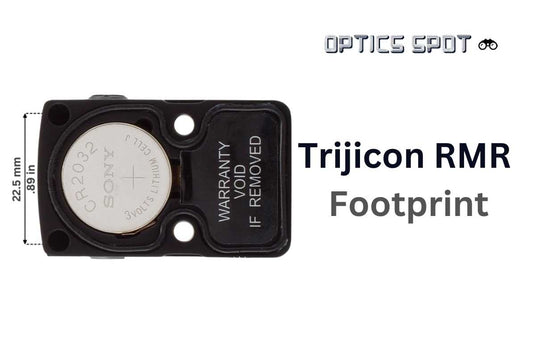

Priekšējās ligzdas ir 22,5 mm / 0,89 collas attālumā viena no otras, katra novietota redzes priekšējā stūrī. Šo divu ligzdu novietojums atbilst tapu novietojumam, kas atrodas uz jebkura stiprinājuma virsmas, kas atbilst šim standartam.

Skrūvju caurumi ir novietoti aptuveni optiskās ierīces vidū. Tie kalpo redzes fiksācijai uz stiprinājuma. Šie divi skrūvju caurumi ir 18,8 mm / 0,74 collas attālumā viens no otra.

Skrūves, kas jāizmanto šiem skrūvju caurumiem, vienmēr ir iekļautas komplektā ar redzi.

Saderīgs kolimatori

RMR ir viens no visbiežāk sastopamajiem pēdas nospiedumiem tirgū.

Zemāk jūs varat atrast pilnu tēmēkļi sarakstu, kas darbosies ar Trijicon pēdas nospiedumu.

Trijicon RMR standard

Kolimatori ar Trijicon RMR pēdas nospiedumu

Skatīt visu

Kā uzstādīt kolimators ar Trijicon RMR pēdas nospiedumu

Tas ir atkarīgs no tā, kādu ierīci vēlaties uzstādīt.

Citi pēdas nospiedumu standarti

Ir daudz dažādu bāzu priekš kolimators tēmēkļi, bet citi visbiežāk sastopamie ir šādi:
